4 products in this product line

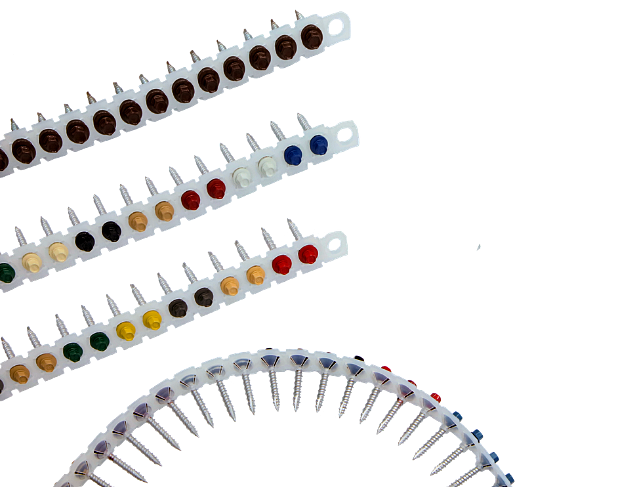

ROOFING SCREW
ROOFING SCREW

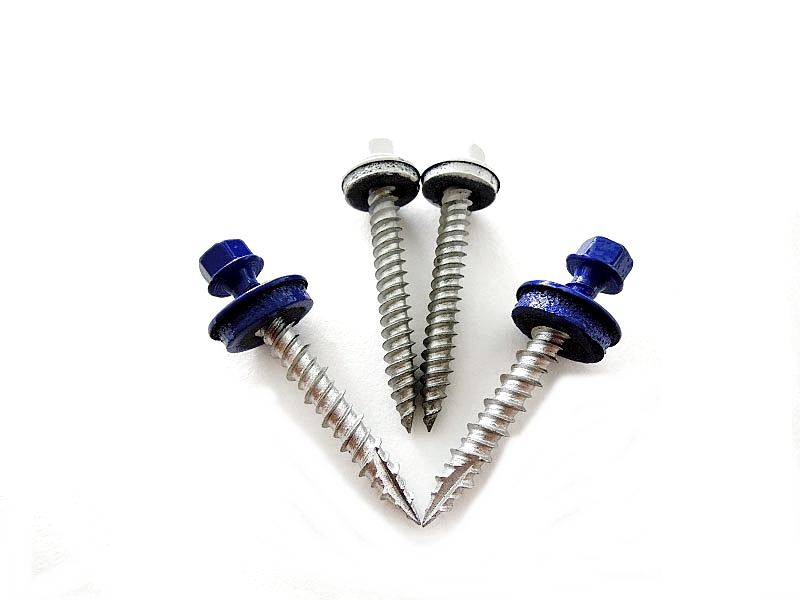

IHWH sharp point or drill point with EPDM bonded washer assembly. Prefect for metal roofing, post frame constructing, metal buildings, horse barns, storage units, commercial buildings. Available in various colors painted.
DIN7504K SDS IND. HEX WASHER REDUCED POINT HARD ZINC
WITH 14MM OD EPDM BONED WASHER
| DxL / mm |
| 4.8x28 |
| 4.8x35 |
| 4.8x55 |
The catalogue of colors RAL
The catalogue can be shown not absolutely precisely in connection with different color adjustments and models of monitors of different users. The published catalogue is called to show breadth of color scale RAL.
SELF-DRILLING SCREWS
Assembled With a Bonded EPDM Washer
| UNSLOTTED INDENTED HEX WASHER HEAD ZINC PLATED. | |||
| SIZE | POINT | APPLICATION | |
 |
8-18x1/2 | 2 | Assembled with 10mmOD EPDM Bondod Washer. Metal to metal fastening range .035-.100 |
| 8-18x5/8 | 2 | ||
| 8-18x3/4 | 2 | ||
| 8-18x1 | 2 | ||
| 8-18x1-1/4 | 2 | ||
| 8-18x1-1/2 | 2 | ||
| 8-18x2 | 2 | ||
 |
10-16x1/2 | 2 | Assembled with 12.7mmOD EPDM Bondod Washer.Metal to metal fastening range.035-.176 |
| 10-16x5/8 | 2 | ||
| 10-16x3/4 | 3 | ||
| 10-16x1 | 3 | ||
| 10-16x1-1/4 | 3 | ||
| 10-16x1-1/2 | 3 | ||
| 10-16x2 | 3 | ||
| 10-16x3 | 3 | ||
 |
12-14x3/4 | 3 | Assembled with 14mmOD EPDM Bondod Washer.Metal to metal fastening range.110-.210 |
| 12-14x1 | 3 | ||
| 12-14x1-1/4 | 3 | ||
| 12-14x1-1/2 | 3 | ||
| 12-14x2 | 3 | ||
| 12-14x2-1/2 | 3 | ||
| 12-14x3 | 3 | ||
| 12-14x4 | 3 | ||
 |
14-14x3/4 | 3 | Assembled with 16mmOD EPDM Bondod Washer.Metal to metal fastening range.110-.230 |
| 14-14x1 | 3 | ||
| 14-14x1-1/4 | 3 | ||
| 14-14x1-1/2 | 3 | ||
| 14-14x1-3/4 | 3 | ||
| 14-14x2 | 3 | ||
| 14-14x2-1/2 | 3 | ||
| 14-14x3 | 3 | ||
| 14-14x4 | 3 | ||
| 14-14x5 | 3 | ||
 |
12-24x7/8 | 4 | Assembled with 14mmOD EPDM Bondod Washer. Metal to metal fastening range |
| 12-24x1-1/4 | 5 | ||
| 12-24x1-1/2 | 5 | ||
| 12-24x2 | 5 | ||
